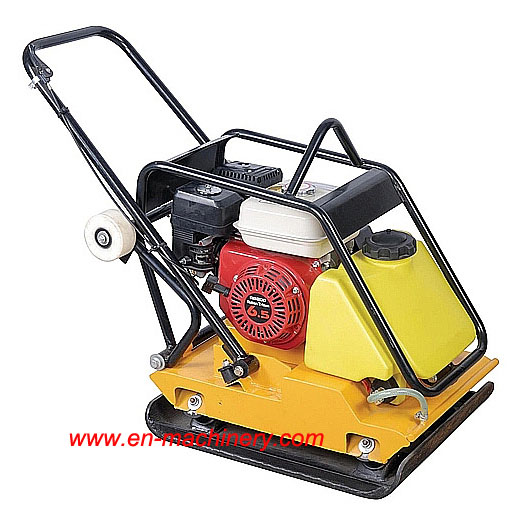

    Compactor Walk Behind Robin Engine Concrete Plate Compactor (CD160)

    Ask Lasest Price
    Brand Name : YONGTUO
    Certification : CE,SGS
    Model Number : CD160
    Price : $300/set
    Delivery Time : about 3 days for ready goods,about 7 days for OEM
    Payment Terms : TT or L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 2000 pcs/month
    • Product Details
    • Company Profile

    Compactor Walk Behind Robin Engine Concrete Plate Compactor (CD160)

    Compactor Walk Behind Robin Engine Concrete Plate Compactor (CD160)


    Plate compactor is ideal for sand, gravel and mixed soils in narrow trenches and along foundations, walls and abutments. We can do OEM /ODM order

    Features for compactor
    1) Low maintenance
    2) Less time and less cost for repaire. Reduce vibration of upper engine and handle
    3) Straight handle is also available
    4) Seald belt cover prevents sand and soil

    Certifications:European CE, ISO 9001

    I will response within 24 hours and our products have 6 months warranty and lifetime maintenance.


    We can do OEM orders for your any styles of plate compactor.


    ModelCD60-1CD60-2CD60-3CD80-1CD80-2CD90CD100-1CD100-2CD120CD160
    engine(optional)HondaRobinLifanHondaRobinLifanHondaHondaRobinLifan
    power5.0-6.5HP5.0-6.5HP3.0KW5.0-6.5HP5.0-6.5HP5-7.5HP5.0-9.0HP5.0-9.0HP5.0-9.0HP5.0-9.0HP
    impact force(KN)111110.512131517172025
    speed(RPM)6000600060006000600060006000600060006000
    compaction depth(mm)150150150180180200200200200300
    working speed(m/min)20202520-2520-2520-2520-2520-2520-2515-20
    weight(kg)6060707580909090100120
    size(mm)820*350*800820*350*800820*350*750850*400*800850*400*800900*450*800900*450*800900*450*8001200*480*900800*500*1050

    ModelC50C90C160S (L)C330ZBR75S
    Centrifugal Force8.5kn16KN30KN38KN14KN
    Vibrating Frequency5210vpm4750VPM4500VPM4500VPM4300VPM
    Max. Travel Speed15m/min20m/min20m/min20m/min21m/min
    Plate Size450*300mm540x450mm700x500mm700x500mm500x520mm
    Efficiency250m2/hr450m2/hr480m2/hr480m2/hr520m2/hr
    Compaction Depth20cm30cm50cm50cm
    Engine TypeLoncin G154 (3HP)

    Honda GX160(5.5HP)

    Loncin G200(6.5HP)

    Honda GX270(9HP)

    Loncin G270(9HP)

    Honda GX390(13HP)

    Loncin G390(13HP)

    Gasoline Kohler CH260
    Weight52kg90kg146kg250kg/275kg77kg
