    Spare Parts/Construction Of ZN28 Electrical Concrete Vibrator Shaft/Internal Vibrator

    Ask Lasest Price
    Brand Name : YONGTUO
    Certification : CE,SGS
    Model Number : ZN
    Price : $5 per pc
    Delivery Time : about 15 days
    Payment Terms : TT or L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 20000 pcs/month
    • Product Details
    • Company Profile

    Spare Parts/Construction Of ZN28 Electrical Concrete Vibrator Shaft/Internal Vibrator

    Spare Parts/Construction of ZN28 Electrical Concrete Vibrator Shaft/Internal Vibrator

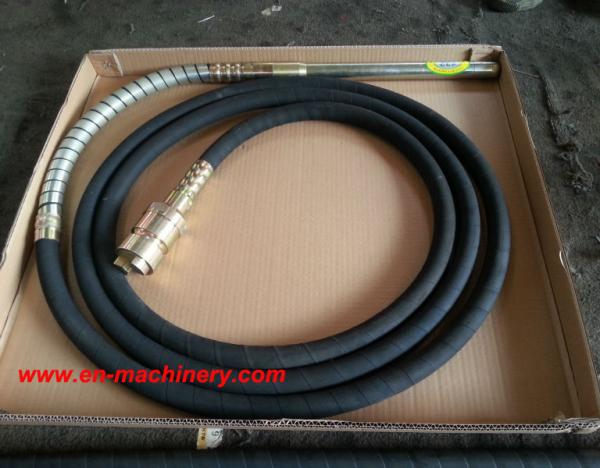

    Concrete Vibrator Shaft
    1Japanese, Dynapac, Chinese type are available;
    2Gasoline, Diesel and electrica motor are available.

    Concrete Vibrator Shaft


    Functional Description:

    Apply to compact concrete, make it bind togeter tight and eliminat concrete phenomena such us honeycomb, further increase its strength to ensure the quality of concrete.


    Main Features:


    1. The tip of vibrator, which forged by high-quality 40 Cr-alloy steel with Salt bath furnace quench technology, mostly improving the mechanical capacity up to hardness of HRC52-58 degree;

    2. Leeving: Use 45# carbon steel, handled by high-frenquency quenching and the hardness is up to HRC50~52 degree

    3. Rolling element: handled by high-frenquency quench with high grade 40 Cr-alloy steel

    4. Flexible pipe: Use high-quality native rubber and 65# Mn alloy spring steel and the thickness around 1.8MM.

    Each concrete vibrator shaft are strictly tested by our engineer before sealed in the bag or packed in the carton box. So our quality can be guaranteed.

    ModelCVS28CVS32CVS35CVS38CVS45CVS50CVS60CVS70
    Dia. of Vibrating head28mm32mm35mm38mm45mm50mm60mm70mm
    Dia. of rubber hose25mm30mm30mm30mm30mm36mm36mm36mm
    Dia. of flexible shaft8mm10mm10mm10mm10mm13mm13mm13mm
    Standard length4m &6m
    Coupling modelChinese type,Japanese type.Malaysian type,Australian type.etc.
    ColorZinc Color,other color for optional
    Package5-layer Carton box with bubble inside
    Carton SizeNormally,77x66x5.5cm; Malaysina type,77x66x7cm77x66x7cm
    Hs Code8479909090

    Technical Parameters

    Diameter (mm)Tolerance (mm)Number of LayersLoading Moment
    (N · m)
    (Sample 500mm Long)
    Weight
    (kg/ 100m)
    2.0+0.02
    -0.02
    3/50.81.8
    2.53/51.02.8
    3.23/51.34.6
    3.83/51.56.5
    5.0+0.00
    -0.05
    3/4/51.811.3
    6.03/4/52.416.2
    6.54/5/72.918.7
    8.04/5/6/77.528.8
    104/5/6/722.545.5
    124/5/6/739.066.5
    134/5/6/750.577.5
    164/5/6/7115.0114
    184/5/6/7160145
    The flexible shafts not listed in the chart can be customized
