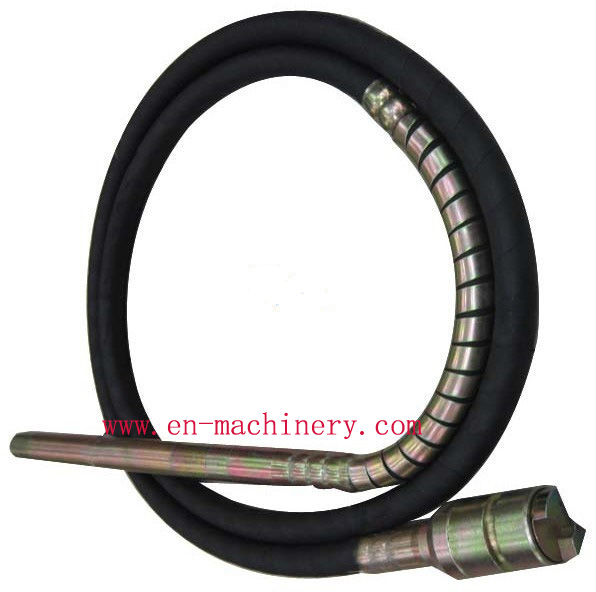

    Japanese Type 38mm,6mtrs Concrete Vibrator Shaft (Hexagonal Joint) With Vibrating Hosefor Concrete Vibrator Poker,Needle

    Ask Lasest Price
    Brand Name : YONGTUO
    Certification : CE,SGS
    Model Number : ZN
    Price : $10 per pc
    Delivery Time : about 20 days
    Payment Terms : TT or L/C, Western Union, MoneyGram, D/A, D/P
    Supply Ability : 20000 pcs/month
    • Product Details
    • Company Profile

    Japanese Type 38mm,6mtrs Concrete Vibrator Shaft (Hexagonal Joint) With Vibrating Hosefor Concrete Vibrator Poker,Needle

    Japanese type 38mm,6mtrs Concrete Vibrator Shaft (hexagonal joint) with Vibrating hosefor concrete vibrator poker,needle

    1.Japanese type vibrator shaft,
    2,Korean type vibrator shaft ,
    3.Dynapac type vibrator shaft,
    4.Chinese type vibrator shaft,

    different diameter concrete vibrator shaft with butterfly/Janpanese type, 25mm,28mm,32mm,38mm,40mm,45mm,50mm,60mm,70mm from 1m - 12m,even 16m length
    concrete poker vibrator shaft
    vibrator poker shafts
    Electric motor concrete vibrator shaft


    1) It is widely used in bridge,port construction,large dams,intensive reinforced concrete wall and other constructional engineer.
    2) The shaft is driven by electronic concrete vibrator motor,gasoline concrete vibrator motor or diesel concrete vibrator motor.
    3) Maximal working/set efficiency of swing type oscillating stick may reach 25CBM/hour. The motor rotation speed is 3600 rpm, and multi-point vibration speed may reach 12000rpm. It has the advantage of good mechanical performance, stable operation, low noise, good anti-wear performance, and reducing low working costs and labor load. It is widely applied in the world.

    We are an expert manufacturer of concrete vibrators,the concrete could match flexible shafts and flexible tubes.
    rich expertise and advanced manufacturing equipments ensures the reliable quality, which being sold to all over China and exported to many countries including Europe, Japan, Korea , and Malaysia etc.

    ModelZN25ZN35ZN38ZN50ZN70
    Vibrating Head Diameter(mm)2535385070
    Vibrating Frequency(Hz)220200200200200
    Vibrating Amplitude(mm)0.70.91.01.01.2
    Motor Speed(r/min)40004000400040004000
    Length(m)4-124-124-124-124-12
    Weight(kg)6911.512.514

    ModelJKV25JKV28JKV32JKV35JKV38JKV45JKV50JKV60JKV70
    Dia. of vibrating head25mm28mm32mm35mm38mm45mm50mm60mm70mm
    Dia. of hose(outside)25mm25mm30mm30mm30mm30mm36mm36mm36mm
    Dia. of shaft8mm8mm10mm10mm10mm10mm13mm13mm13mm
    Total length1~6m1~6m4~8m1~8m4~8m4~10m4~12m4~12m4~12m
    Weight (6m)10kg10kg11kg12kg13kg15kg19kg23kg25kg
    Packing size (6m)77x66x5.5cm77x66x7cm
    Packing waycarton box
    Coupling typeChinese type,Japanese type.Malaysian type,Australian type.etc.
    Hs Code8479909090



    You may also interested in other products,mini concrete mixer,vibratory road roller
