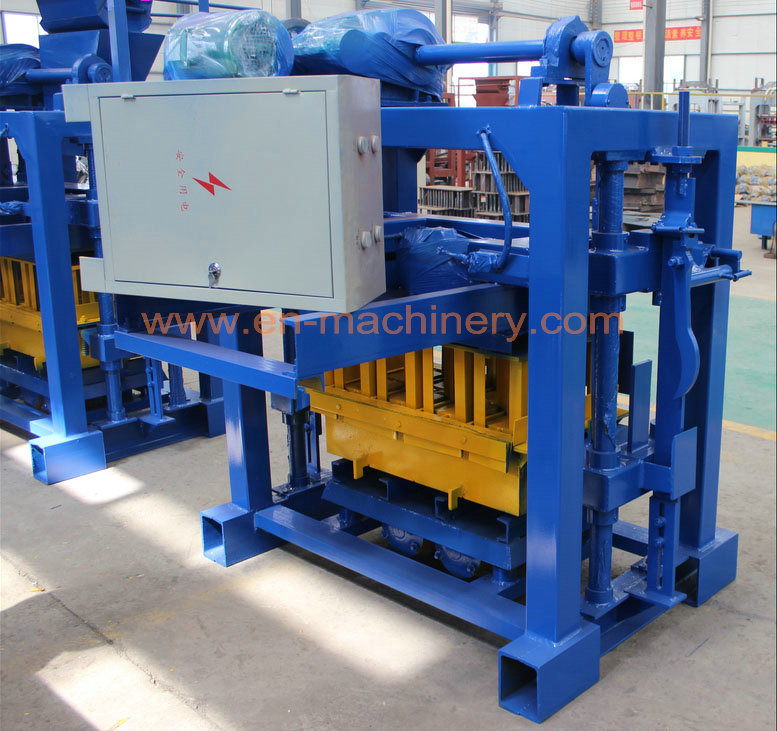

Brick Making Machine Small Cement Manual Hollow Block Making
Machine With Mixer 4-40
Can Produce all kinds of hollow and solid blocks
4-40 manual machine concrete block technical parameter:
Dimension of host machine: 2000×1500×1600mm machine power:9.7KW
Test pressure: 4.5mpa/cm2 Vibration force:max5000r/h
Forming period: 40S Capacity:9.7kw
The size of the pallet: 850×450×35mm Mixer model:diameter 1.2m
Weight of the machine: About 1.2T Voltage:380v
4-40 mnaual machine concrete block other information:
1. Area: Workshop area: 50-60m2, all factory area 1000m2, the
bigger, the better.
2. Workers : two or three
3. Ratio of raw material:cement 8%-10% sand 30%-40%
stone:50%-60%,about cement :sand : stone is1:4:5.
4.hollow block weight::
(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG
5. raw material consumption per day:60-70T
6. water consumption per day:3%-5% of raw material
4-40 manual machine concrete block motor voltage:
380V/50-60hz/3 phase, 415V/50-60hz/3 phase, 440V/50-60hz/3 phase,
220V/50-60hz/3 phase, 240V/50-60hz/3 phase,
Advantage of 4-40 manual machine concrete block:
A:the steel is national standard No.45 steel.the best in our country
B:the welding is the best welding technology,anti-wear,
aseismatic,anti Moist
C:the mould is high temperature carburizing heat treatment through
900 Degrees Celsius
D:guide column:four guide column,use overlong guide design,the
surface
is chrome-plated,have good anti-wear and high anti-distortion, Long
service life .
E.Multi-function:exchange moulds can produce solid bricks,hollow
blocks and porous block can make all kinds of blocks
4-40 manual machine concrete block installing and after service:
we can send our engineer to install and commissioning the block
machine and train your workers.
we have professinal after servce term and technology term,any
question you have you can feel free to contact us,we are 24 hours
for your service.
Please notice that our service is up to your requirments.
- If you'v got a brick factory and you want to improve your current
formual and save the cost, our professional team are willing to
give you the best suggestion and technical support.
- If you want to join in this filed, our professional team would like
to offer you the best guidance and give you a full appreciation
about our machine and the the feasibility of its investment.
We sincerely welcome you to visit our factory and discuss the
feasibility of cooperation.
