    Motor-In-Head Portable Concrete Vibrator Hose For Sale Concrete Needle

    Ask Lasest Price
    Brand Name : YONGTUO
    Certification : CE,SGS
    Model Number : ZN
    Price : $5 per pc
    Delivery Time : about 20 days
    Payment Terms : TT or L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 20000 pcs/month
    • Product Details
    • Company Profile

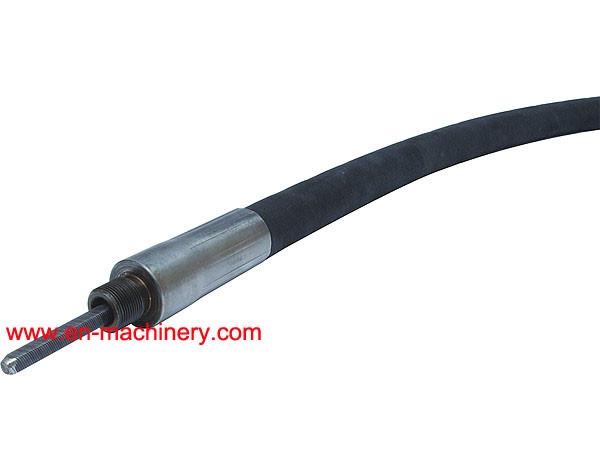

    Motor-In-Head Portable Concrete Vibrator Hose For Sale Concrete Needle

    Motor-in-head portable concrete vibrator hose for sale Concrete Needle


    Concrete Vibrator Shaft
    1Japanese, Dynapac, Chinese type are available;
    2Gasoline, Diesel and electrica motor are available.

    Concrete Vibrator Shaft


    Functional Description:

    Apply to compact concrete, make it bind togeter tight and eliminat concrete phenomena such us honeycomb, further increase its strength to ensure the quality of concrete.


    Main Features:


    1. The tip of vibrator, which forged by high-quality 40 Cr-alloy steel with Salt bath furnace quench technology, mostly improving the mechanical capacity up to hardness of HRC52-58 degree;

    2. Leeving: Use 45# carbon steel, handled by high-frenquency quenching and the hardness is up to HRC50~52 degree

    3. Rolling element: handled by high-frenquency quench with high grade 40 Cr-alloy steel

    4. Flexible pipe: Use high-quality native rubber and 65# Mn alloy spring steel and the thickness around 1.8MM.


    Model No
    ZX35
    ZX45
    ZX50
    Diameter
    35mm
    45mm
    60mm
    Vibrating frequency
    183Hz
    183Hz
    183Hz
    Outside dia of flexibe hose
    30mm
    32mm
    36mm
    Inner dia of flexible shaft
    10mm
    12mm
    13mm
    Length
    1m to 4m
    1m to 12m
    1m to 12m
    Max. vibratioin force
    4.846KN
    5.932KN
    6.704KN
    Vibrating amplitude
    1.11mm
    1.2mm
    1.28mm
    Avaible motor or engine
    electric motor, gasoline engine, diesel engine

    Technical Specifications:


    1000 N50-60 N40Mn-65Mn20HRC-30HRC50-62
    JYG1616mm9mm175
    JYG20
    20mm10mm180
    JYG2222mm10mm280
    JYG2460-65 N20Mn-65Mn75-80according to the
    24mm13mmdemand100
    JYG3030mm16mm120
    JYG32
    32mm18mm150
    JYG36
    36mm20mm200
    JYG42250
    42mm25mm

    You may also interested in other products,mini concrete mixer,vibratory road roller


    Contact us:

    Sales Manager: Jessica

    E-mail:sales@en-machinery.com

    www.en-machinery.com

    Tel:0086.574.88124576

    Wechat:0086-13857868709
